Product Category

SS/CS flange with male thread

One end fixed flange according to EN1092-1 (DIN2633),
Other end with male pipe thread (G=EN ISO 228/BSP parallel),
Length according to thread standard, with flat sealing surface.

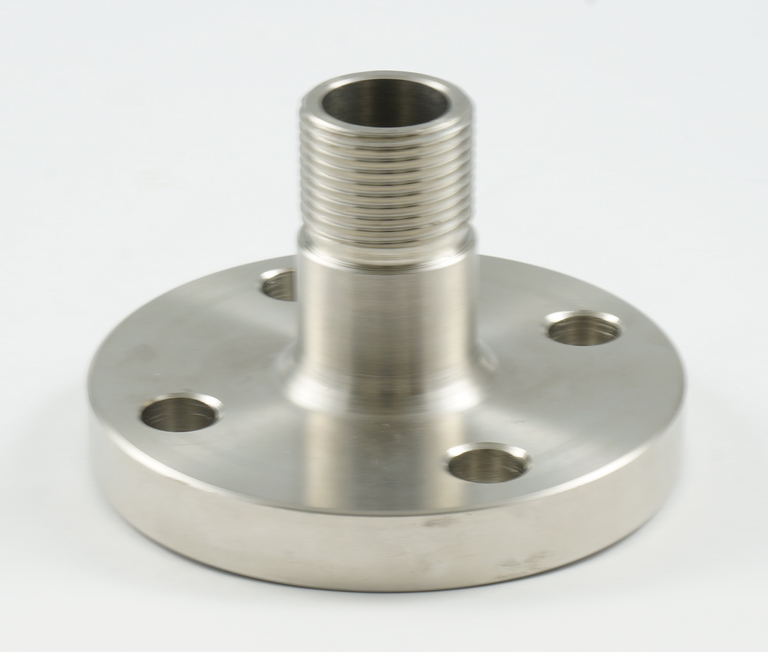

FLANGE WITH MALE THREAD
Size	Total Length(mm)	Thread			CARBON STEEL	SS316
DN25	73	1" G			V	V
DN32	75	1-1/4" G			V	V
DN40	87	2" G			V	V
DN40	77	1-1/2" G			V	V
DN50	109	2" G			V	V
DN50	90	2" G			V	V
DN65	90	2-1/2" G			V	V
DN65	90	3" G			V	V
DN80	125	3" G			V	V
DN80	95	3" G			V	V
DN100	86	4" G			V	V

Swivel flange couplings smooth/serrated tail
Size	SS316	Carbon Steel
DN25	V	V
DN32	V	V
DN40	V	V
DN50	V	V
DN65	V	V
DN80	V	V
DN100	V	V
DN125	V	V
DN150	V	V
DN200	V	V

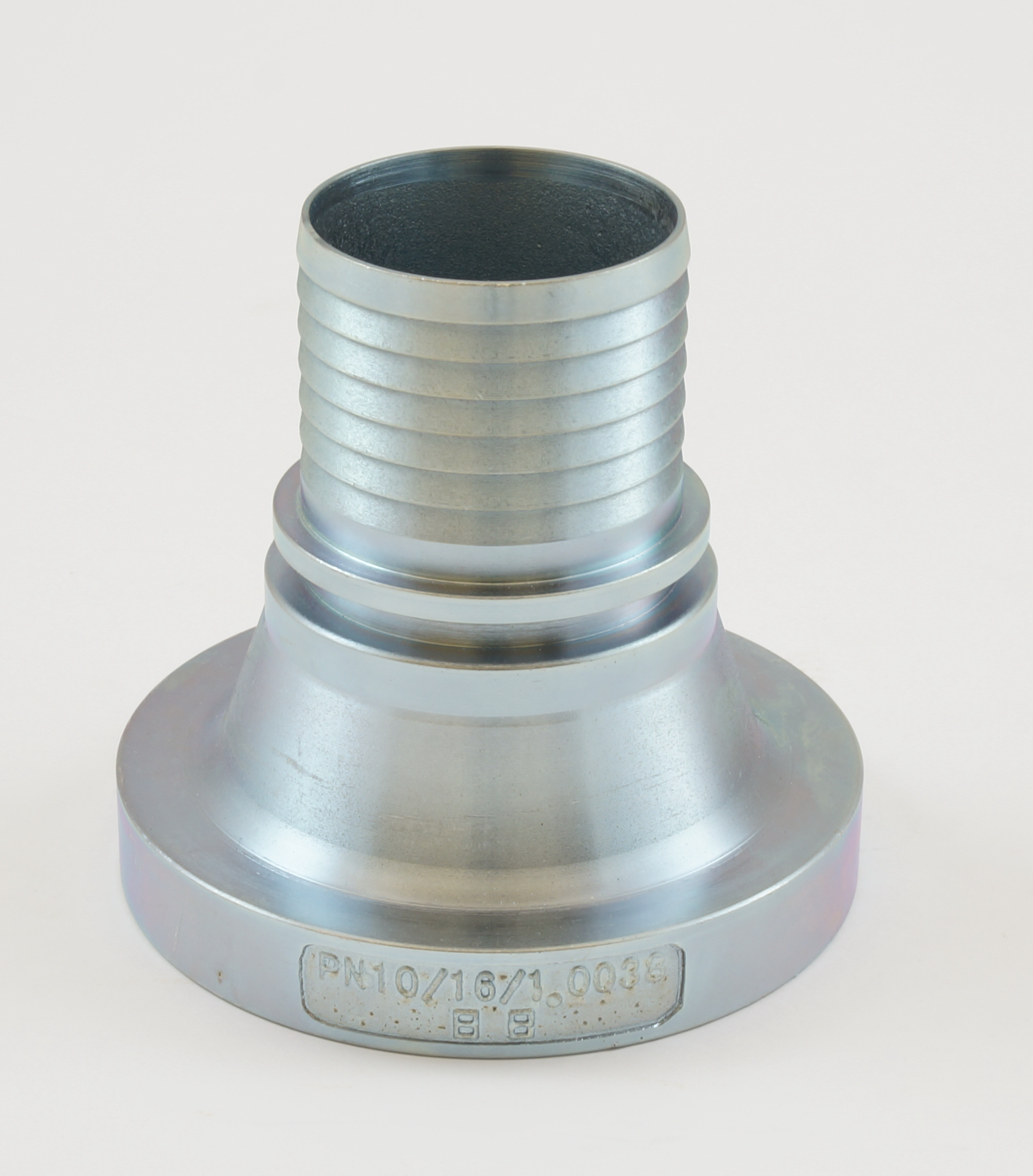

Couplings smooth tail/ Couplings serrated tail
Size	SS316	Carbon Steel
DN25	V	V
DN32	V	V
DN40	V	V
DN50	V	V
DN65	V	V
DN80	V	V
DN100	V	V
DN125	V	V
DN150	V	V
DN200	V	V

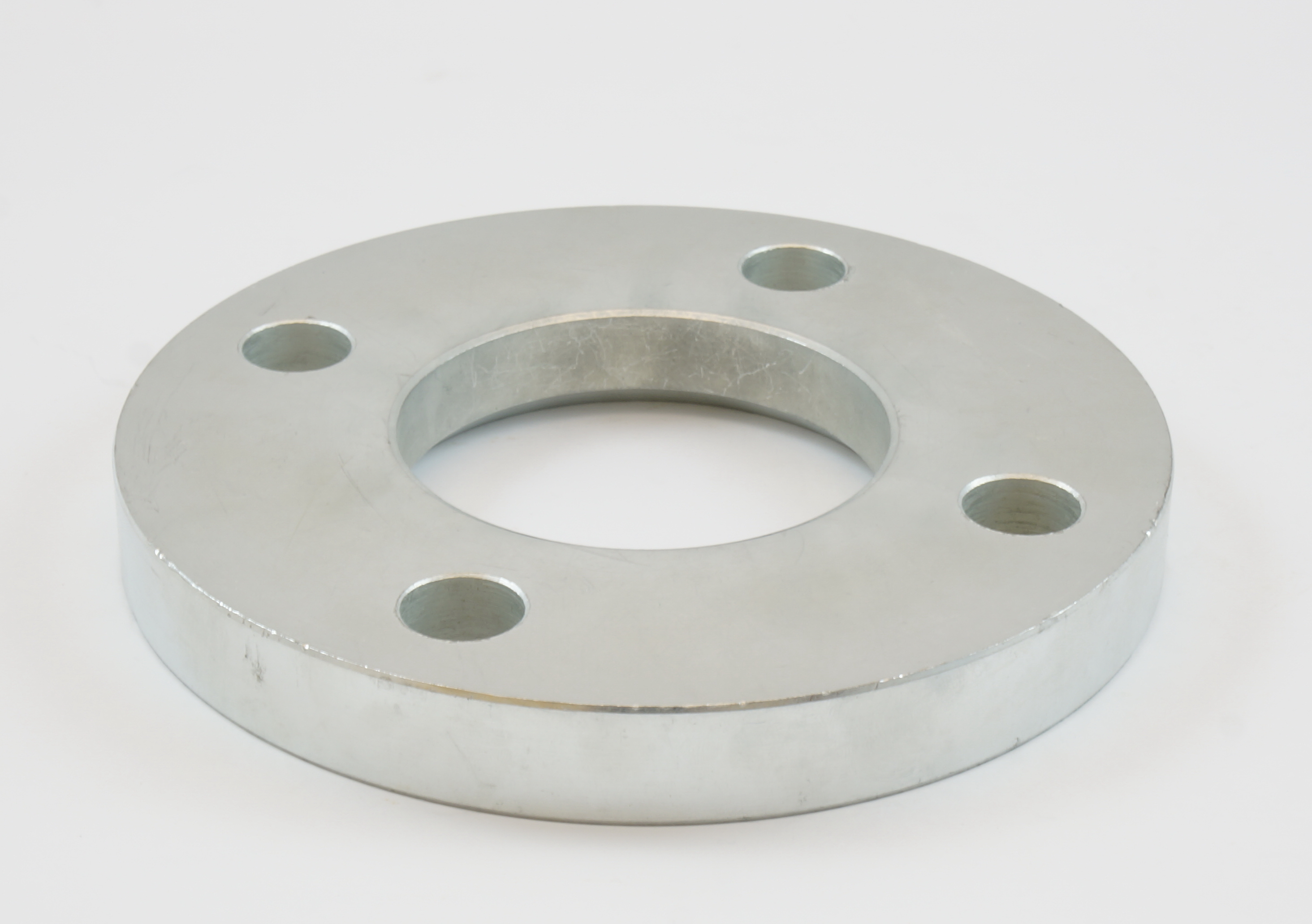

Flange
Size	SS316	Carbon Steel
DN25	V	V
DN32	V	V
DN40	V	V
DN50	V	V
DN65	V	V
DN80	V	V
DN100	V	V
DN125	V	V
DN150	V	V
DN200	V	V
