LNC Coupling

LNC Coupling and Safety Clamp in Stainless Steel and Brass

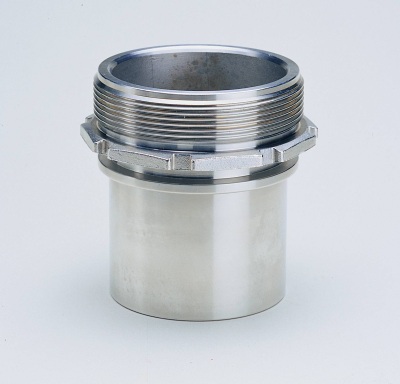

Male Coupling
	S/S	Brass
	DN19	DN19
	DN25	DN25
	DN32	DN32
	DN38	DN38
	DN50	DN40
	DN65	DN50
	DN75	DN65
	DN7565	DN75
	DN100	DN100

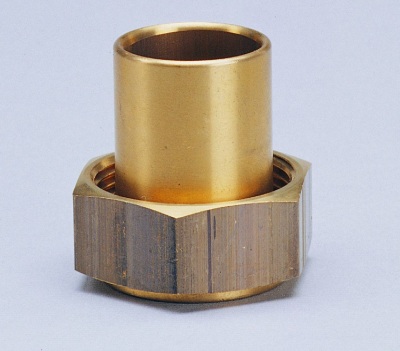

Female+Nut
	S/S	Brass
	DN19	DN19
	DN25	DN25
	DN32	DN32
	DN38	DN38
	DN50	DN50
	DN75	DN75
	DN100	DN100

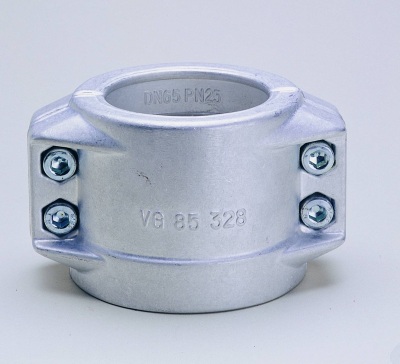

EN14420-3 AL/SS/BR Safety Clamp
Brass	SS	AL	DN	Hose DN	Clamping range	Bolts and Nuts
●	●	●	13	13x5	22-24	M6
●	●	●	19	19x6	30-33	M6
		●	25	25x5	34-36	M6
●	●	●	25	25x6	36-39	M6
		●	25	25x8	40-43	M6
		●	32	32x5	41-43	M6
●	●	●	32	32x6	43-46	M6
		●	32	32x8	47-49	M6
		●	38	38x5	47-49	M6
●	●	●	38	38x6.5	50-53	M6
●	●	●	38	38x8	53-56	M6
		●	38	38x10	57-60	M6
		●	40	40x7	53-56	M6
		●	40	40x10	58x61	M6
		●	45	45x7	58-61	M6
	●	●	50	50x6	61-63	M6
●	●	●	50	50x8	63-67	M8
	●	●	50	50x10	69-71	M8
		●	65	63x6	74-76	M8
●	●		65	63x8	78-80	M8
		●	65	63x10	84-87	M8
		●	75	75x6	84-86	M8
●	●	●	75	75x8	89-93	M8
		●	75	75x10	94-97	M8
		●	75	75x12	98x101	M8
	●	●	80	80x8	94-97	M8
		●	80	80x10	99-102	M8
		●	90	90x6.5	104-108	M8
		●	90	90x8	105-107	M8
●	●	●	100	100x8	114-119	M10
		●	100	100x10	118-122	M10

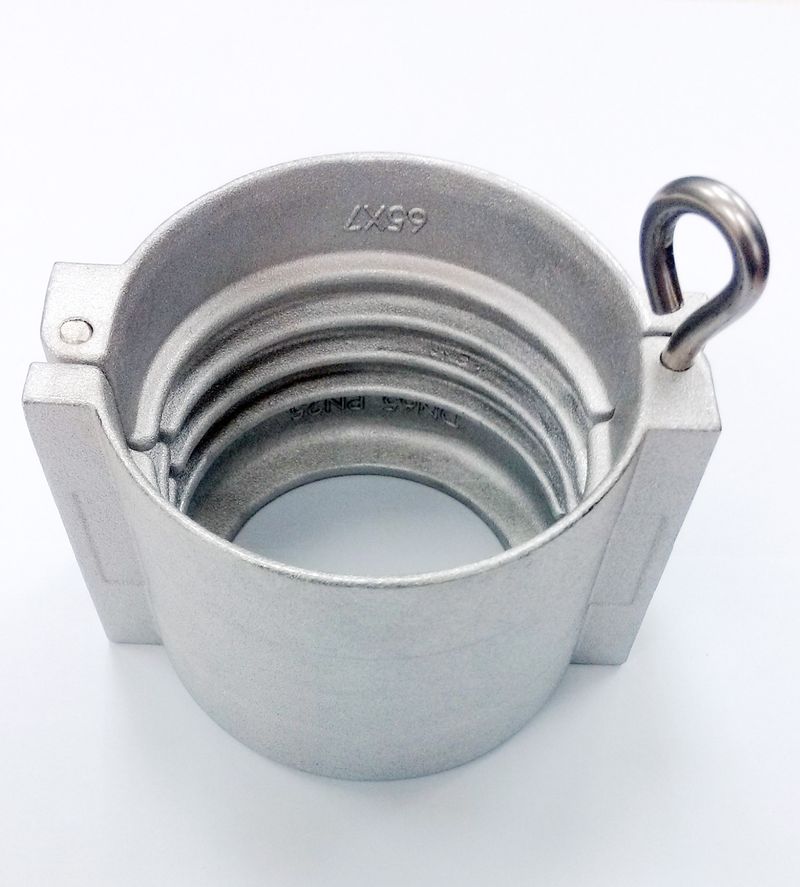

EN14420-3 AL PIN Safety Clamp
DN	Hose DN	Clamping range
25	25x6mm	36-39
32	32x6mm	43-46
40	38x6.5mm	50-53
50	50x8mm	63-67
65	63x8mm	78-80
80	75x8mm	94-97
100	100x8mm	114-119
