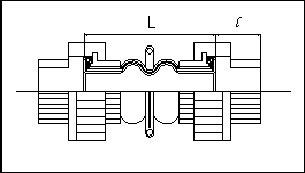

TWIN SPHERE CONNECTORS
WITH PVC UNIONS
| Nominal Diameter | Installed Length(mm) | Travel(mm) | Allowable Movements from Neutral | Working Pressures | |||||||
| Length of Rubber |
Length of Flange | Min-Max | Total | Axial | Axial | Lateral | Angular | Positive | Vacuum | ||
| Installed | Compressed | Compre- ssion |
Exten- sion |
Deflection | Degrees | P.S.I.G | Rating | ||||
| inch | mm | (L) | (l) | Extended | at 80°C | mm | |||||
| 1/2" | 15 |
154 |
24.5 | 186-206 | 181-209 | 22 |
6 | 22 | 32° | 150 |
660 |
| 3/4" | 20 | 154 | 24.5 | 186-206 | 181-209 | 22 |
6 | 22 | 32° | 150 |
660 |
| 1" | 25 | 143 | 30 | 186-206 | 181-209 | 22 | 6 | 22 | 25° | 150 | 660 |
| 1 1/4" | 32 | 140 | 31.5 |
186-206 | 181-209 | 22 | 6 | 22 | 25° | 150 | 660 |
| 1 1/2" | 40 | 129 | 37 | 186-206 | 181-209 | 22 | 6 | 22 | 20° | 150 | 660 |
| 2" | 50 | 127 | 38 | 186-206 | 181-209 | 22 | 6 | 22 | 15° | 150 | 660 |
| 2 1/2" | 65 | 117 | 43 | 186-206 | 181-209 | 22 | 6 | 22 | 12° | 150 | 660 |
| 3" | 80 | 117 | 42 | 186-206 | 181-209 | 22 | 6 | 22 | 10° | 150 | 660 |
| Flange is available with BSP Thread and NPT | |||||||||||
